North American
F-86H Sabre Hog

Halberd Models, 1/48 scale

Reviewed by Brett Green

The North American F-86H Sabre, popularly known as the ‘Sabre Hog’, was the ultimate development of one of the most famous jet aircraft of the Cold War. Although outwardly resembling the Sabre family, the F-86H was a substantially larger and more powerful aircraft, designed specifically for the fighter-bomber role.

Development began in March 1951 under North American Aviation’s NA-187 project. The USAF wanted a more capable tactical fighter that could carry a heavier weapons load while retaining the excellent handling qualities of the earlier F-86. The resulting aircraft incorporated a larger and more powerful General Electric J73 turbojet, requiring an enlarged air intake and a longer, wider fuselage. The additional internal volume also allowed increased fuel capacity.

The first flight of the F-86H was on 30 April 1953. Production aircraft incorporated a number of significant changes from earlier Sabres, including a revised clamshell canopy, an enlarged tail and four underwing stores stations for bombs or drop tanks. The first examples retained the traditional six .50-calibre machine guns, but later aircraft received four powerful 20 mm M39 cannon.

Designed as a fighter-bomber, the F-86H could carry conventional bombs, rockets and, importantly during the early Cold War, a tactical nuclear weapon. The aircraft was also equipped for low-level toss-bombing, making it a potentially formidable strike aircraft.

Production began in late 1953, with virtually all F-86Hs built at North American’s Columbus, Ohio, factory. Sources differ slightly on the final total, but approximately 475 aircraft, including prototypes, were completed before production ended in 1955–56. The first operational aircraft entered USAF service in 1954.

Despite its impressive performance, the Sabre Hog arrived at a time when fighter development was moving rapidly into the supersonic age. The arrival of the North American F-100 Super Sabre quickly rendered the subsonic F-86H obsolete in front-line USAF service. By 1958, the type had largely been transferred to the Air National Guard.

The F-86H never saw combat, but it remained an important part of the United States’ tactical air forces throughout the Cold War. Air National Guard units continued to operate the Sabre Hog into the early 1970s, while a number of retired aircraft later found a further role with the U.S. Navy as adversary trainers and target drones.

Fast, powerful and heavily armed, the F-86H represented the ultimate expression of the classic Sabre as a conventional fighter-bomber.

Halberd Models from Ukraine continues to support the cause of unusual and previously un-kitted resin subjects. This time, it is the 1:48 scale F-86H Sabre Hog. As far as I am aware, the only other 1/48 scale Sabre Hog is the Collect-Aire kit, now long out of production and in a different universe of quality and detail - not to mention buildability!

The main components are presented in Halberd’s now unmistakable distinctive green, warp-free resin. The kit comprises 41 conventionally cast resin parts, 44 3D-printed detail parts, 27 photo-etched parts, and a small sheet of 3D-printed harness straps. Markings for two very different subjects are supplied, one in natural metal and the other in a modified South East Asia (SEA) camouflage scheme. Detailed instructions are also included.

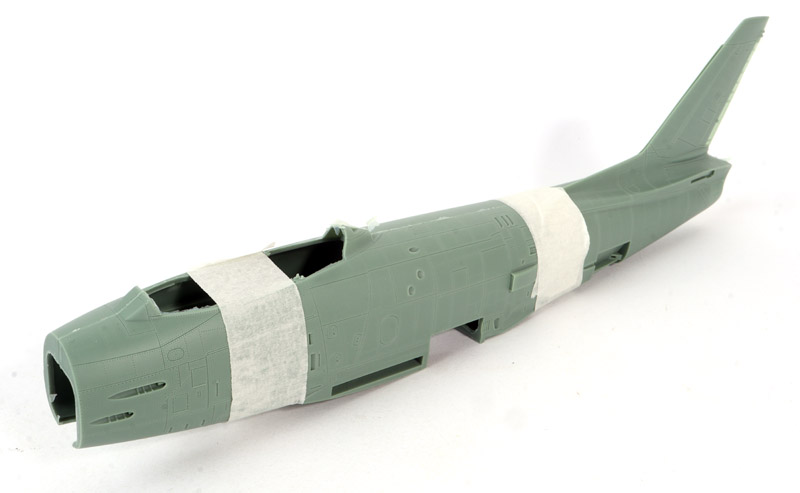

Everything is packed into a sturdy cardboard box, which survived the journey from Ukraine to Australia completely intact. The two fuselage halves are held together with masking tape for transit, and the fit is astonishingly good.

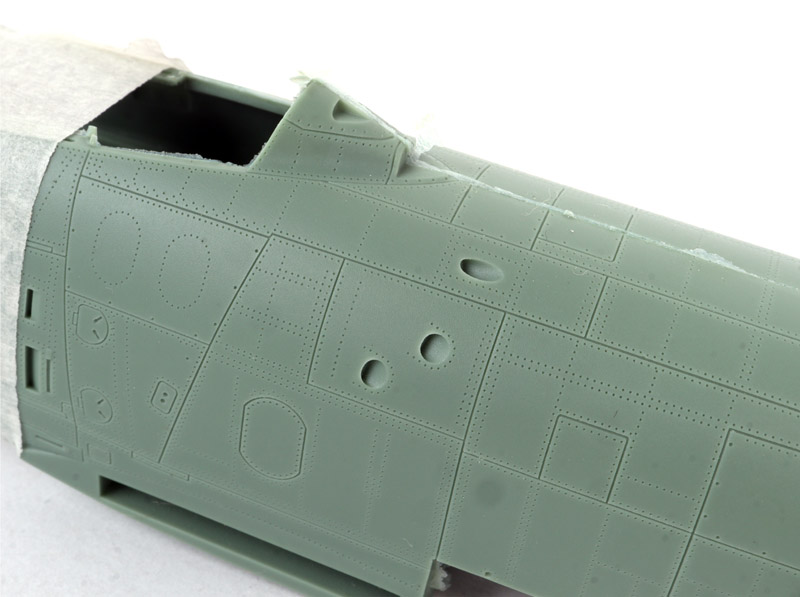

The next thing to strike the modeller is the surface detail. These are some of the finest textures I have seen. They comprise consistently crisp, recessed panel lines, rows of rivets, and other appropriate raised and recessed structural features.

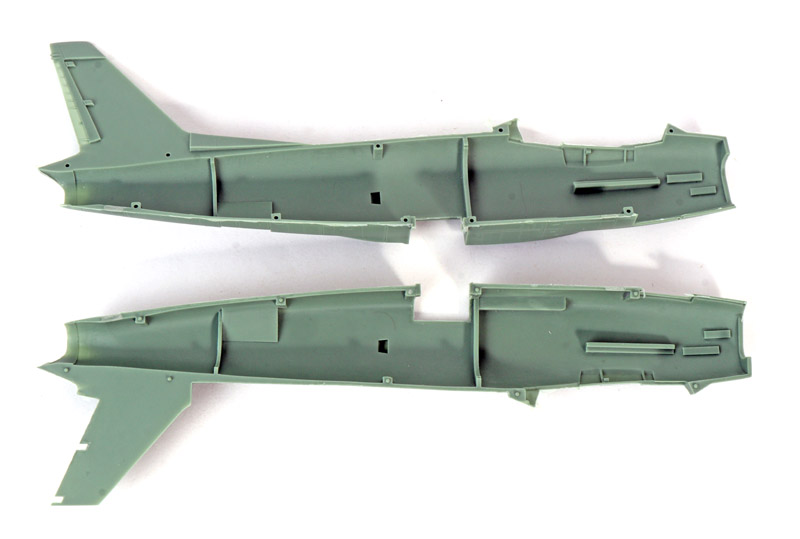

The interior of the fuselage features a couple of bulkheads built into each side to maintain the structure of these large resin components.

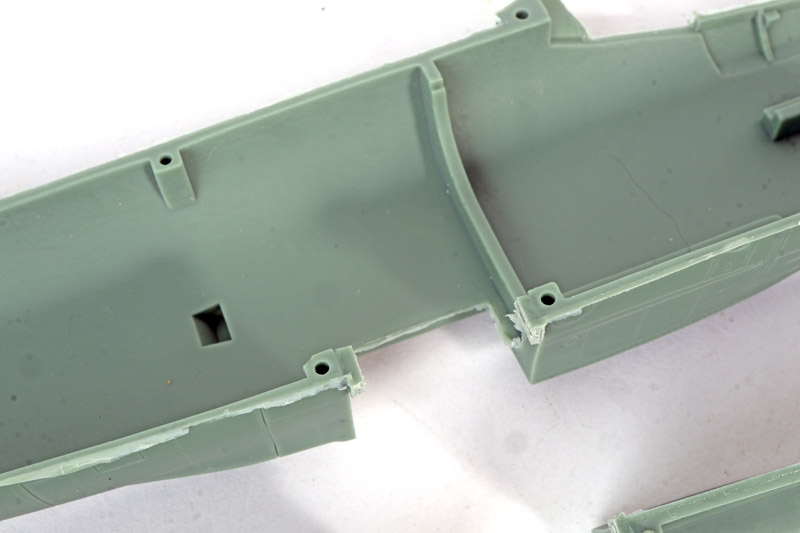

A number of locating pegs and holes are also cast in place, as are the basic cockpit sidewalls.

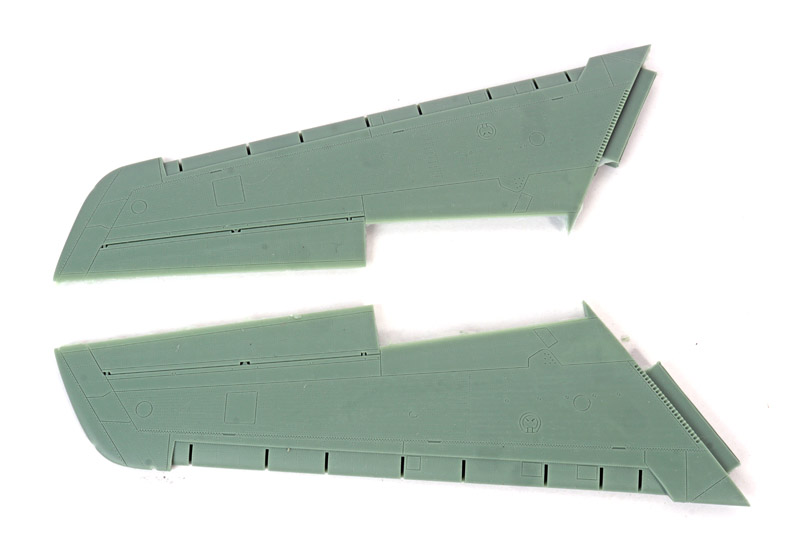

The port and starboard wings are each cast as a single piece, with the ailerons moulded in place. The flaps and leading-edge slats are separate parts, as are the tail surfaces. Two drop tanks, each assembled from front and rear sections, are supplied.

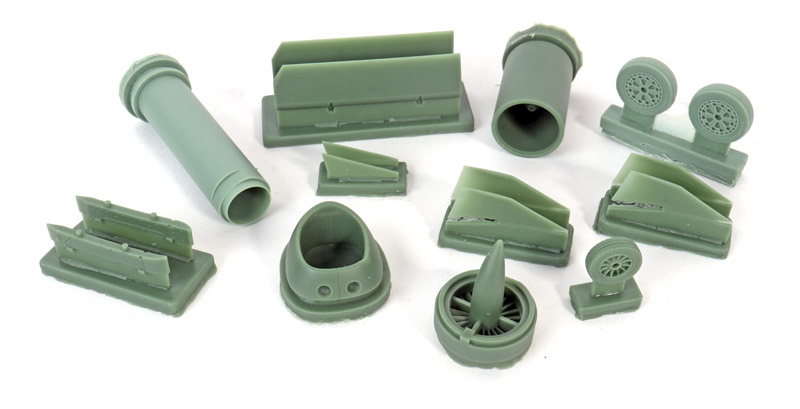

The smaller conventional resin components, including the wheels, intakes and racks, are every bit as well produced as the larger parts. Overall production quality is excellent, with only minimal clean-up required before assembly.

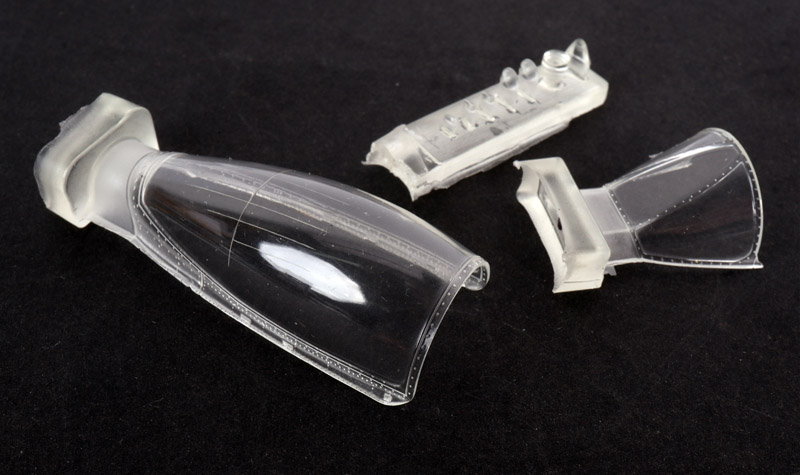

The clear resin parts are beautifully presented. The windscreen and sliding canopy section are separate components.

A particularly nice touch is the fine lines visible inside the clear canopy, representing the Automatic Direction Finder (ADF) sense aerial.

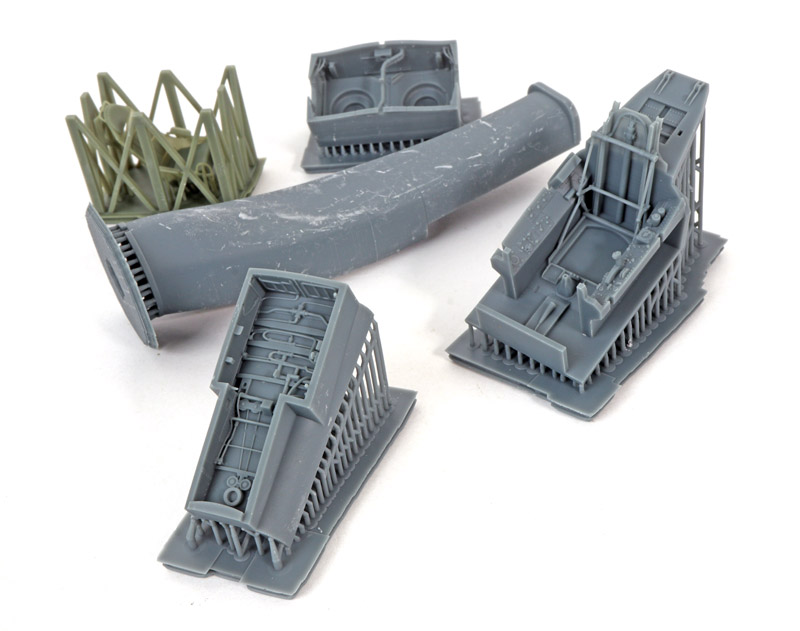

The 44 3D-printed parts are packed into two separate boxes, each accompanied by a list and illustrations identifying the components.

The balance between conventionally cast and 3D-printed resin is a notable point of difference from earlier Halberd Models releases, with the two types of parts now represented in roughly equal numbers.

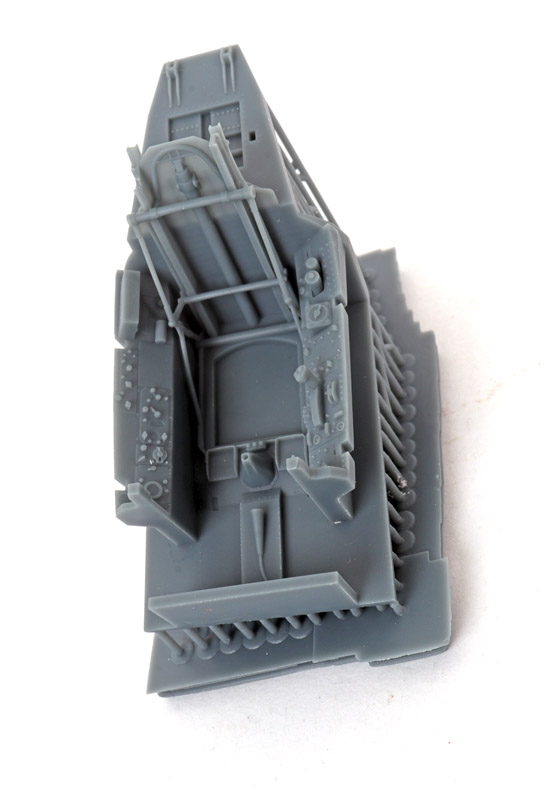

The 3D-printed components add considerable detail while requiring very little preparation. The ejection seat is a separate part that fits onto the rear cockpit frame. The cockpit tub is well detailed, with the side console detail printed in place.

The forward wheel well is another separate component. It includes a glimpse of the jet engine and associated cabling, which should look convincing after a little careful weathering.

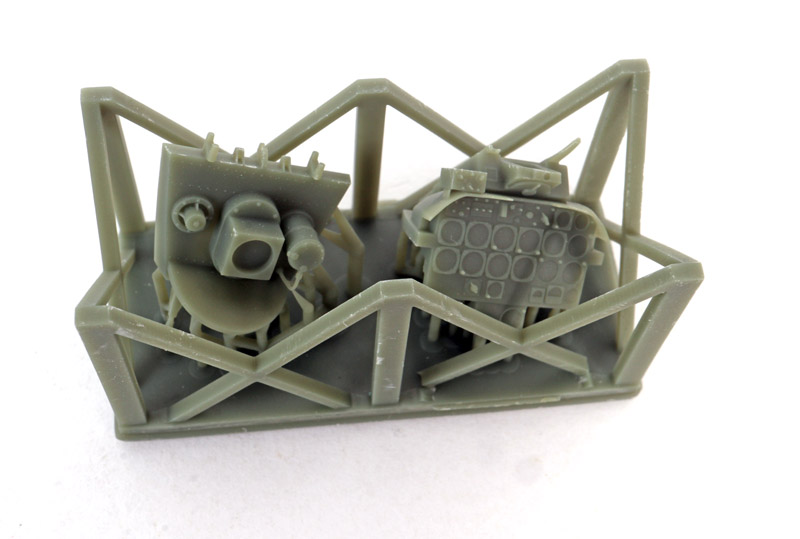

The instrument panel is a solid resin part, accompanied by two different decals that can be applied over its surface.

I am sure the two options differ subtly, although I have yet to identify precisely what those differences are.

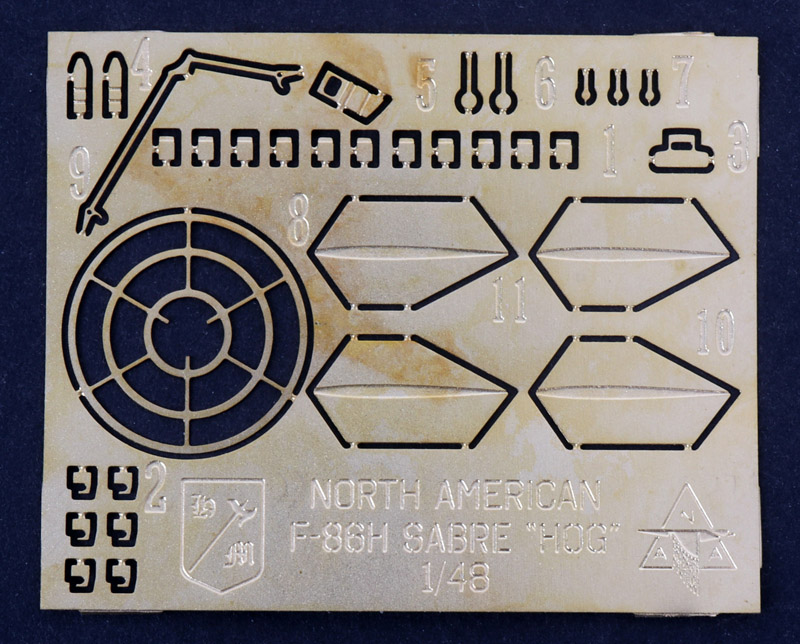

Smaller details may be found on the photo-etched fret.

Markings and Instructions

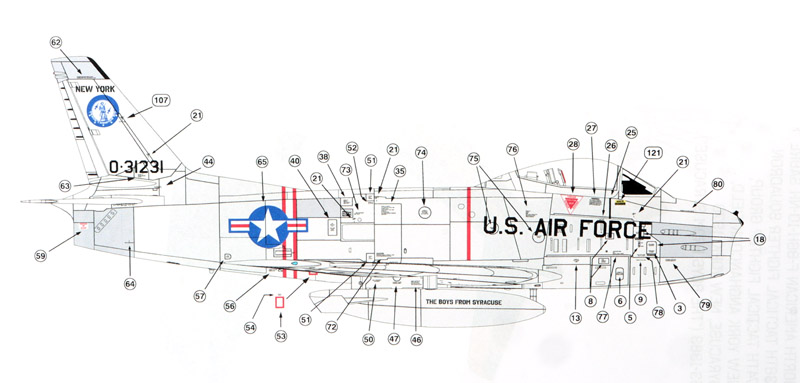

The instructions are clear and easy to follow.

The decals are produced in Ukraine by Decograph.

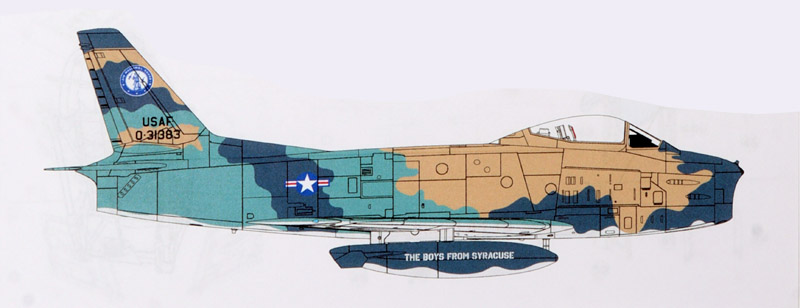

The two marking options could hardly be more different, with one representing a natural-metal aircraft and the other finished in a modified SEA camouflage scheme. .

Halberd Models has produced another outstanding resin kit.

The combination of beautifully cast conventional resin, finely detailed 3D-printed parts and excellent surface textures makes this a very impressive package.

With minimal clean-up required and two contrasting marking options, the F-86H Sabre Hog looks set to be a thoroughly enjoyable project.

If unusual subjects are your thing, this one is very easy to recommend.

It is also worth remembering that this Ukrainian company continues to manufacture and distribute its kits in the midst of a war. Buying this kit is one small way we can support our Ukrainian friends.

Thanks to Halberd Models for the sample
